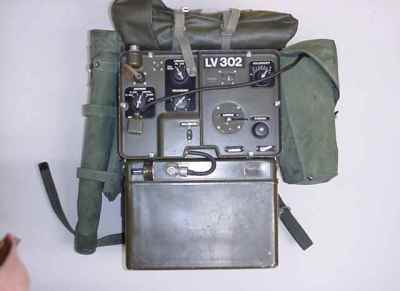

LV-302

Is ein Finnish army radio, used between 1960 .. 1980 (other sources say 1950 .. 1970). It was built by Ericsson in Sweden, as a Finnish version of the Swedish RA-122. The circuit may be derived from the BC-1000A, since the same mixing techniques are uses as in the American BC-1000.

Frequency range:

40 .. 60 MHz, tunable

HF- output:

1 W

Modulation:

FM broadband

Range:

abt 5 km

Antennas:

1.2 and 3.25 m

Powered by:

7 V NiCad and PSU

Crystals:

12.7MHz, 16.2MHz and Calibrator 2.9 MHz

Voltages and power drain:

Filament 7.5 V , 475 mA

Anode 67.5 V, 55 mA

Anode 130 V; 60 mA
