Search And Rescue Radios ( Sorted Chronologically )
DH4PY

To picture gallery







      RT-278/URC-10
RT-278/RT-10
      RT-60












All American SAR- Radios from their beginning to 1968 are part of the collection. More modern ones are (still) too expensive....


BC-778
(1941)

CRC-7
(1942)

PRC-17, A
(1953)

PRC-32
(1958?)

PRC-49 A, B, C
(1962)

PRC-63
(1965)

PRC-96
(1976)

American SAR-Radios

RT-159/ URC-4
(1952)

RT-285/ URC-11
(1954)

RT-278/ RT-10
(1962)

URC-64
(1964)

URC-68
(1965)

PRC-90, -1,-2,-A
(1968ff)

RT-1531, 1535
PRC-112, A
(198?)

You may also read the article by Alan Tasker :
"U.S. Military Portable Radios"

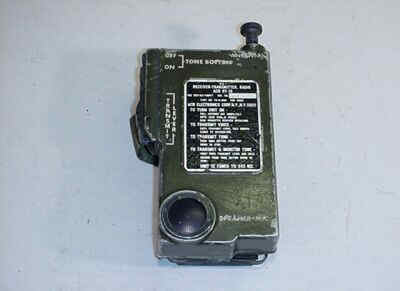

  RT-278 / RT 10 (1968)

is an American SAR -Radio, used by the Air Force and the Navy.
The RT-10 is pictured (attached battery version), and the RT-278 / URC-10 looks the same, but it is an internal battery version.

Frequency:
243 MHz.



Technical data:
Channels:
1 Channel, crystel controlled.
HF Output:
200 mW.
Sensitivity:
10 uV.
Modulation:
AM, mcw.
Year of issue:
1962.
Replaces:
URC-11
Replaced by:
URC-64
