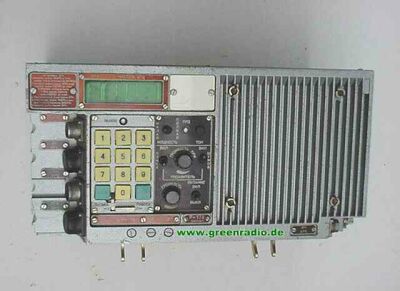

  R-173

is the most modern tank radio in my museum. Issued from 1987 on to the NVA, it is built with the most modern parts.
It is used to transmit voice and encrypted analogue und digital signals.
It is built to stand extreme mechanical and temperature conditions and is still built nowadays.

Frequency range:
30.000 ... 75.999 MHz




Technical data:
HF output:
30 W
Modulation:
FM
Display:
digital
Entry of frequency:
keypad
Frequency stability:
+- 1.5 kHz
Preset channels:
10
Digital transmition:
16 KBaud
Changing of channels:
ca 3 sec
Sensitivity:
1.5 uV
Range:
ca 50 km
Operational voltage:
27 +- 2V
Power consumption:
Tansmitting 9A
Receiving 1.5 A
Weight:
43 kgs
Size:
428 × 222 × 238 mm
Antenna length:
30 MHz : 2.4 m
76 MHz : 0.9 m
