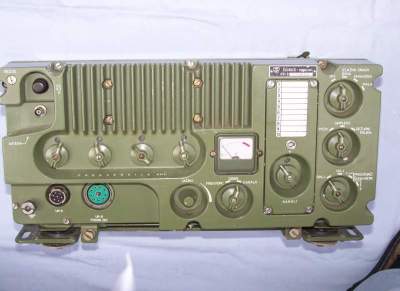

  RUT-1

is a mobile Yugoslavian radio, used in tanks and by armed brigades. It is fully transistorized.

Parts of the radio set are:

 *  Transceiver PD-9
 *  Broadband antenna AT-22 (3 segments: 3,55 m; if necessary 2 segments: 2.6 m)
 *  Mast AT-23
 *  Intercommunication device UMR
 *  Main control box UK-9; - it can operate 2 transceivers PD-9.
 *  Tank headset UK-11;

In the early 70s it was built by "Rudi Cajavec" in Banja Luka. It is used as a transmitter, and it provides communication inside the vehicle, also when the surrounding noise is very high.

RUT-1
operation


[ <== click picture ]

Frequency range:
20 .. 69.975 MHz




Technical data:
HF output:
0.1, 0.2, 2, 5, 30 W
Mode:
FM
Channel spacing:
25 kHz
Stored channels:
10
Voltage:
22 .. 30 V DC
AF output:
1.2 W
Range:
20 km
