  AN/VRC-12
      VRC-53











  AN/VRC-12- Series

was the
standard mobile radio from the Vietnam War (1965) to the 90s.
The radios were used together with AN/PRC-25 and AN/PRC-77 Manpacks, used from the 60s to th 80s.
It consists of three main components:
(The collection contains all three radios.)

RT-246A/VRC, a transceiver with 10 preset channels without loudspeaker;
[ < click ]

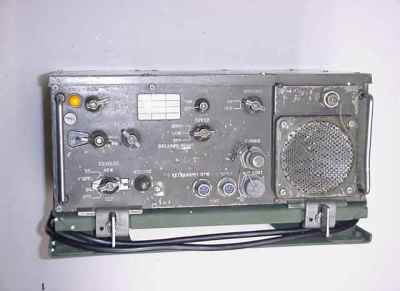

RT-524A/VRC, a transceiver without presets but with loudspeaker
[ < click ]
R-442A/VRC, auxiliary receiver
[ < click ]


The radios were put together in different combinations, thus forming radio sets
AN/VRC-12 and VRC-43 to VRC-49.

.
VRC-12
VRC-43
VRC-44
VRC-45
VRC-46
VRC-47
VRC-48
VRC-49
RT-246
1
1
1
2
0
0
0
0
RT-524
0
0
0
0
1
1
1
2
R-442
1
0
2
0
0
1
2
0

Explanation of the chart:
A radio plus mounting is the radio set.
VRC-12 consists of one RT-246 (plus mouting) and one RT-242 (plus mounting);
VRC-43 consists of one RT-246 (plus mounting). (and so on)

The series usually is called AN/VRC-12- series.

Accessories:
The Mounting MT-1029 is used for RT-246 and RT-524.
(MT-1029 also holds the power supply & audio amplifier AM-2060 for
PRC-25 and PRC-77).
the Mounting MT-1898 is used for R-442.
Both mountings contain some electric elements.
Other accessories are: Power supply, radio control boxes, transient and mini transient suppressor, cables, antennas, audio accessories etc.

VRC-12 replaces radio sets AN/GRC-3 to AN/GRC-8.


Frequency range:
30.00 ... 75.95 MHz in 2 ranges




Technical data:
Channels:
920
Channel spacing:
50 KHz
Frequency contol:
Crystal
HF output:
Low: 8 W; High: 35 W
Squelch:
New = 150 Hz; Old = noise
Sensitivity:
0.5 µV / 10 dB
Mode:
F3
Audio- frequency:
500 ... 3000 Hz
Powered by:
22 .. 30 V
Power consumption:
Transmitting 9.5 A @ 26.5 V
Receiving 0.75 A @ 26.5 V
Weight:
26.3 kg
Year of issue:
1965
Replaces:
AN/GRC-3 to AN/GRC-8
