  Stornophone 800

is a pocket radio, built for

  • 8m (68 .. 88 MHz) ,
  • 2m (146 .. 174 MHz) , and
  • 70 cm (420 .. 470 MHz)

    It was issued in 1973.

    Loudspeaker and microfone can be ordered built in or on a cable. Up to 12 channels can be orded.

    The modular chassis allows easy maintenance of all parts. (see picture gallery). The modules consist of miniature thick film circuits, all components are mounted on a ceramic substrate.

    The radio was supposed to be a portable with the possibilities of a mobile. It was enhanced and built until the early 80s.

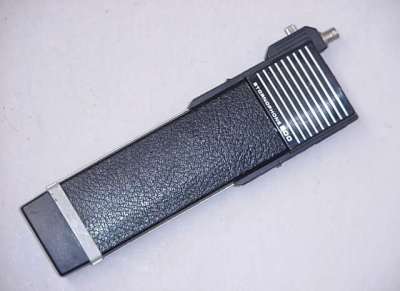

    The radio in the collection is a 2-channel 2m- handy portable.

    Frequency range:
    146 .. 174 MHz




    Technical data:
    HF output:
    0.1 .. 1.5 W;
    Mode:
    F3
    Channels:
    2, 4, 8 or 12
    Channel spacing:
    20 or 25 kHz
    Sensitivity:
    0.25 µV @ 12 dB
    Tone call:
    All possible calls can be ordered
    NF- Bandwith:
    0.3 .. 3 kHz
    Battery voltage:
    10 .. 12.4 V
    Battery capacity:
    depending on version 225 .. 450 mA
    Operating time:
    5% transmitting, 20% receiving; 75% stand by
    depending on battery: 7.5 .. 16.5 hrs
