  SARAM 5-52
      ARC-73











  SARAM 5-52

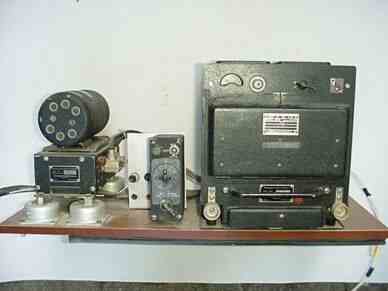

is a AM- Tansceiver, mainly used in planes.
It transmitts and receives on the same frequency.
A homing- system, targeting a VHF Transmitter, can be attached.
Main Parts:

  • Transmitter- Receiver- Block
  • Commando Box, needed to switch on / off, to select frequencies and to operate squelch.
    Frequencies in the transmitter are changed by motors.
  • Power supply, consisting of dynamotor and filter.

    Frequency range:
    100 ... 160 MHz



    Technische Daten:
    Modulation:
    AM
    Channels:
    12, crystal controlled
    IF:
    9.72 MHz
    Voltage:
    22 ... 30 V
    Power consumption transmitting / receiving:
    7.8A / 6.5 A
    HF Output:
    2 - 5 W
    Sensitivity:
    5 uV
    NF Output:
    3 W
    Weights:
    Transmitter- receiver- block with mounting: 12 kg
    Commando box with mounting: 0.9 kg
    Power supply: 4.1 kg
    Year of issue:
    1958 ?? ( Handbook is dated 1958 )
