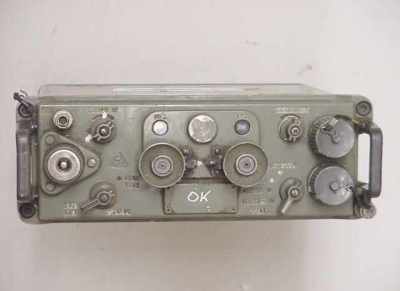

  RV-3

is a modern solid-state Italian radio.
It was delveloped in France under the mane of TR-PP-13B.

Italian names are:

  • ER-95-A/1 for the ransceiver,
  • RV 3/13/P for the portable version (1.5 W);
  • RV 3/13/V for the mobile version (1.5W)
  • RV4/213/V for the complete set with HF amplifier

    Using many modules makes it very servicable. It can be used as portable, mobile or fixed radio station.
    The collection shows the mobile assembly. The mobile power supply is attached to the transceiver and also powers up the amplifier. The amplifier can be set elsewhere, using a long supplying cable.

    Frequency range:
    26.000 ... 71.950 MHz in two ranges:
    Range 1: 26.000 .. 48.950 MHz
    Range 2: 49.000 .. 71.950 MHz



    Technical data: (only few known)
    Channels:
    920
    Channel spacing:
    50 kHz
    Mode:
    FM
    HF output:
    portable: 1.5 W
    with amplifier: 16 W
    Range:
    5 ... 12 km
    Powered by:
    mobile: 24 V
