All American SAR- Radios from their beginning to 1968 are part of the collection. More modern ones are (still) too expensive....


BC-778
(1941)

CRC-7
(1942)

PRC-17, A
(1953)

PRC-32
(1958?)

PRC-49 A, B, C
(1962)

PRC-63
(1965)

PRC-96
(1976)

American SAR-Radios

RT-159/ URC-4
(1952)

RT-285/ URC-11
(1954)

RT-278/ URC-10
(1962)

URC-64
(1964)

URC-68
(1965)

PRC-90, -1,-2,-A
(1968ff)

RT-1531, 1535
PRC-112, A
(198?)



You may also read the article by Alan Tasker :
"U.S. Military Portable Radios"

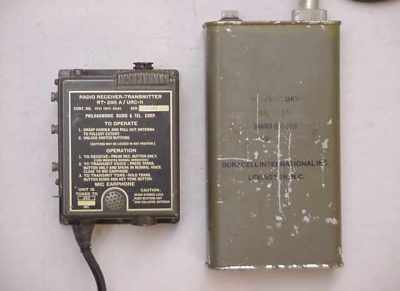

  RT-285 / URC 11 (1954)

is an American SAR -Radio, used by the Air Force and the Navy.

It is the first SAR hybrid radio, i.e. it uses transistors and tubes together (see picture gallery).

Tubes were in sockets because they wore out. A tube tester told you when a tube was worn out. Transistors replaced tubes. Therefore, they needed to be in sockets, and so obviously they needed a tester to test transistors..... except that you didn't really need sockets or a tester because transistors do not generally wear out. The joke was on the taxpayers.

Transistortester for
RT-209/PRC-21 and
AN/URC-11
[ Click picture to enlarge ]

Frequency:
243 MHz.




Technical data:
Channels:
1 channel, crystal controlled.
HF Output:
75 mW.
Sensitivity:
10 µV.
Modulation:
AM, mcw.
Year of issue:
1954.
Replaces:
URC-4
Replaced by:
URC-10
