  HFG-11

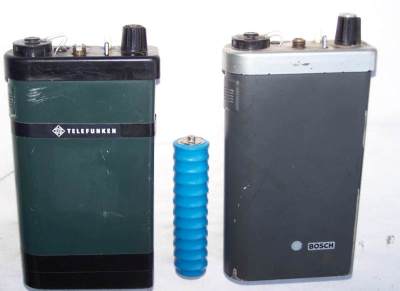

is a solid state handy portable, built 1967 by Bosch. It has one channel in the 2m- band. It is very small for these times.

By using the ample accessories, it can be used hidden on the body. The acessories are connected to the radio with the usually covered connector on the front (with black lid).

The loudspeaker/microphone is situated in the upper part of the small side. A small lever must be pushed to transmit.

The description says it is used as a connection between vehicle and portable sources. It is not stated what groups of persons used this radio.

Frequency range:
2m- band 146 -174 MHz (here: 164.65 mHz)




Technical data:
Channels:
1
HF output:
500 mW
Tone call:
no
Powered by:
NC- battery 15 V; 225 mA
