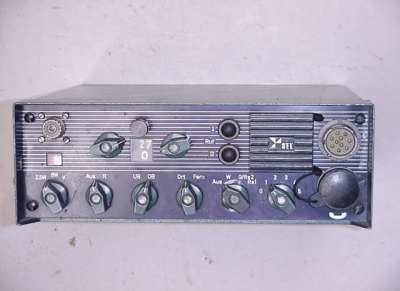

  FuG 9

is a German BOS- radio.
(Behörden und Organisationen mit Sicherheitsaufgaben.)
(public services).

All FuG 9 were developed and built by SEL , Telefunken only used its own logo on the loudspeaker cover and a nameplate of its own.

It is an all solid state BOS - radio in the 2m- band (the HF part, too, is transistorized). It can be used as portable, mobile or fixed station.

200 channels in the lower and in the upper band are available. It can be used as a 200- channel simplex or a 100- channel duplex radio.

To cover larger distances, the FuG 9 can be used as a fully automatic relais station.

A small relais station is a FuG9 used as a duplex radio (using two frequencies).;
A big relais station consists of two Fug 9 with an additional relais device, and uses duplex operation. It theoretically works with simplex operation, but never was used that way.

A Funkgabel connects it to the wired telephone net; or by using two Funkgabel or a relais device and another FuG9 serve as a "Big relais station" so a combination of 2 radios ( 2 times 2 meters or 2m and 4m) is possible.

A separated front (with few operational elements) can be used, if there is not enough place available.

The FuG 9 has a built in transverter. The lower part of the radio can be: a battery box; an amplifier for external loudspeaker; or a 220V- power supply.
This rare power supply is also part of the collection (see picture gallery).

Frequency range:
Lower band 167.54 MHz .. 169.40 MHz (channels 00U to 99U
Upper band 172.14 MHz .. 174.00 MHz (channels 00O to 99O)




Technical data:

HF- output:
6 W / 2.5 W
Transmitter connection:
60 Ohm, unsymmetrical
Channels:
200 channels (simplex)
100 channel pairs (duplex)
Channel spacing:
20 kHz
Two duplex channels are separated:
4.6 MHz
Mode:
FM
Modulation frequency:
300 .. 3000 Hz
Ton calls:
Call 1: 1750 Hz +- 20 Hz
Call 2: 2135 Hz +- 20 Hz
NF- output:
1 W
In the battery box:
10 NiCad- batteries RS 3,5 or dry cells BA 30
Vehicle battery:
6, 12, 24 V
Consumption:
Receiving 6W
Transmitting 2.5 W : 15W
Transmitting 6 W : 35W
