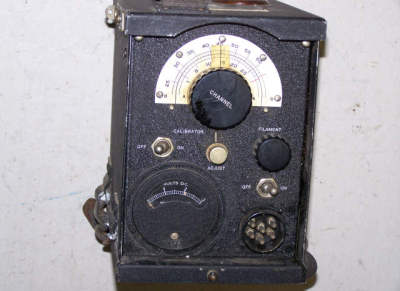

  SCR-194 / BC-222

is an American backpack, developed for the artillery.

  • It dates from the 1930s.
  • It is generally considered to be the first true US Army portable
       transceiver.
  • It contains two tubes
  • It used plug in coils
  • Because it was intended for use by the Artillery, it had
  • Earphones (HS-22) and a separate
  • Microphone (T-24).
    The battery strapped to the bottom of the set, and a telescoping antenna screwed into the top cover. The radio and battery fit into a custom made canvas bag.
  • (BG-71) which was worn on the soldier's back.

  • The Infantry was supplied a version, SCR-195/BC-322. It covered 52-66 MHz in one band.

    The handset TS-11, used with the BC-322 is in the collection:

    TS-11 (Handset for BC-322)
    (round command set type connector and a choke on the cable)

    (click picture to enlarge)

    Also in the collection is the extendable rod antenna:

    Antenna AN-29

    (Click picture to enlarge)

    Frequency range:
    28 ... 52 MHz in two ranges




    Technical data:
    Modulation:
    AM
    Channel spacing:
    400 kHz
    Frequency control:
    VFO
    HF- output:
    750 mW
    Sensitivity:
    10 µV
    Handset:
    T-24/HS-22
    Antenna:
    AN-29 or AN-29B
    Year of issue:
    1938
